Agv Intelligent Handling System-Forward-Moving Unmanned Forklift
The Forward-Moving Unmanned Forklift is a compact intelligent handling equipment suitable for high-level warehousing and narrow channel operation scenarios, with both flexibility and high-level stacking capabilities. Its core features are as follows:
Scope of application
High-level warehousing: suitable for 6~12-meter high-level shelf storage and retrieval, improving the space utilization rate of the stereoscopic warehouse.Narrow channel operation: can operate flexibly in a narrow channel of 2~3 meters to optimize the storage layout.Dense warehousing: suitable for high-frequency and high-density storage environments such as e-commerce, cold chain, and medicine.
Main features
Forward-moving gantry design: the fork can be extended to the depth of the shelf, and the goods can be stored and retrieved without moving the whole vehicle.High lifting capacity: the lifting height can reach 12 meters, meeting the needs of high-level shelves.Compact and flexible: the body is light and the turning radius is small, suitable for narrow space operations.Intelligent navigation: laser SLAM or QR code navigation is adopted, and the positioning accuracy reaches ±5mm.
Safe and efficient: equipped with 3D obstacle avoidance sensors and automatic leveling system to ensure the stability of high-level operations.Reach-type unmanned forklifts are ideal for high-density warehouse automation and can significantly improve space utilization and operational efficiency.
|
Machine Name
|
Forward-Moving Unmanned Forklift
|
|
Rated load(kg)
|
2000
|
|
Turning Radius(mm)
|
1900
|
|
Maximum supported lifting height(mm)
|
6300
|
|
Maximum load supported at lifting height(kg)
|
1800
|
|
Deadweight(kg)
|
4000
|
|
Dimensions LxWxH(mm)
|
2605x1508x2820
|
|
|

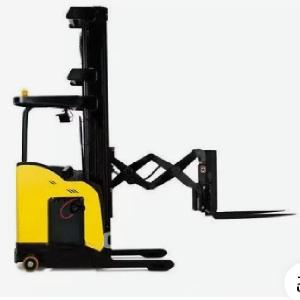

Agv Intelligent Handling System-Forward-Moving Unmanned Forklift Images
|
